LCD Video Walls

Product Features

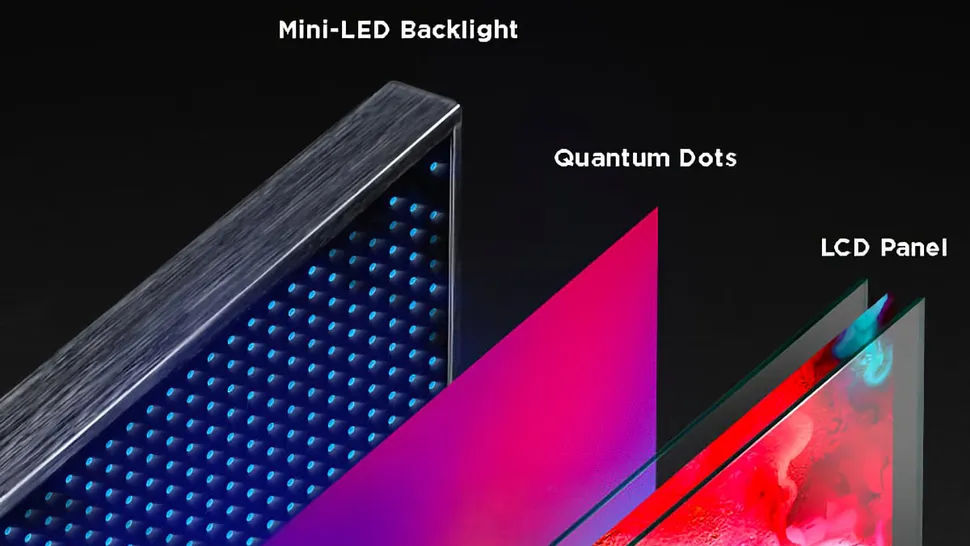

Eco-Friendly and Reliable Performance

onQ's LCD video walls are engineered for energy efficiency without compromising display performance. Commercial-grade panels with advanced LED backlighting deliver high brightness and accurate colour reproduction while consuming significantly less power than previous-generation video wall technologies. Long-life LED backlights rated for 70,000 hours of operation reduce maintenance costs and ensure consistent image quality throughout the system's operational life.

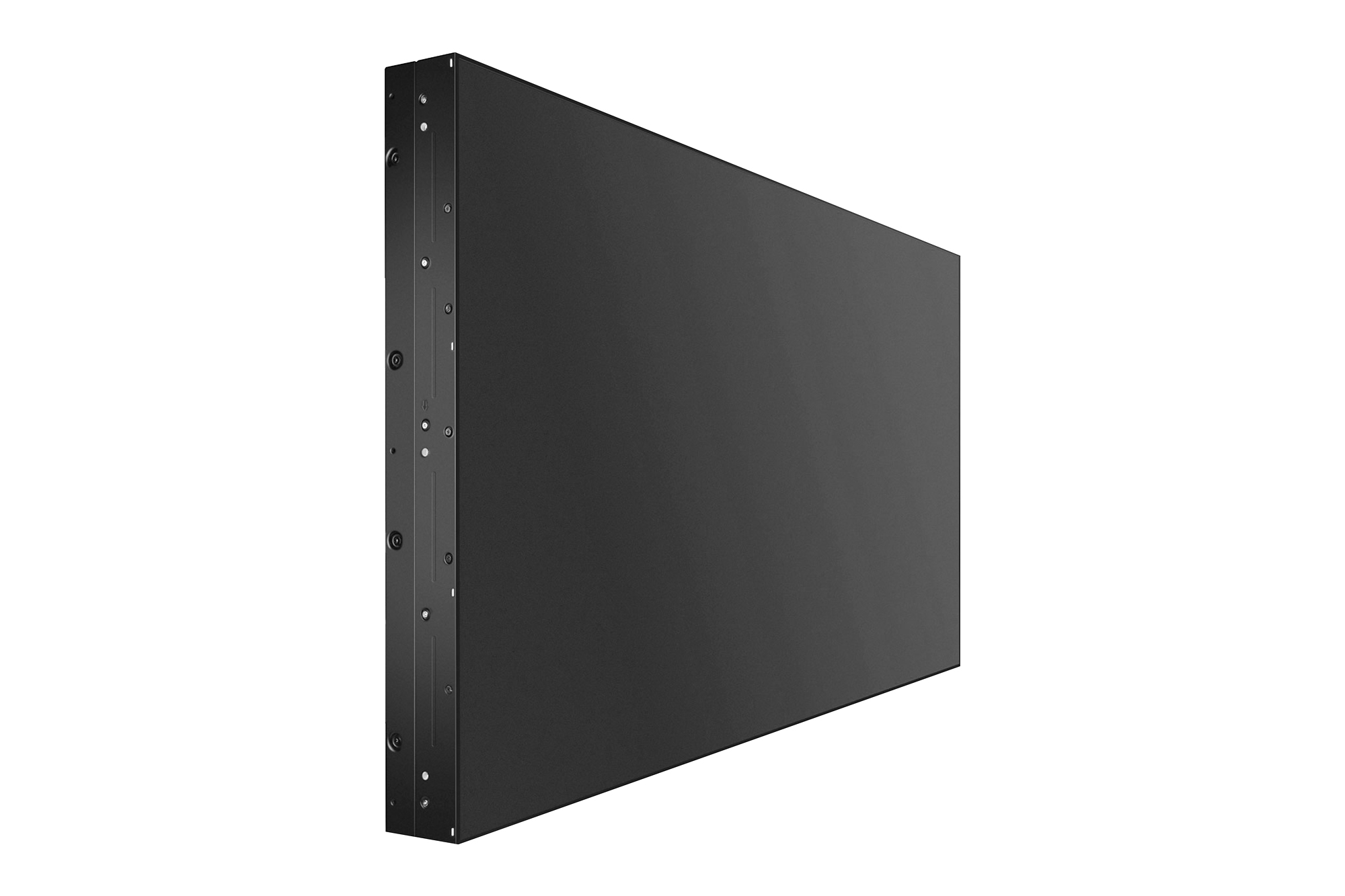

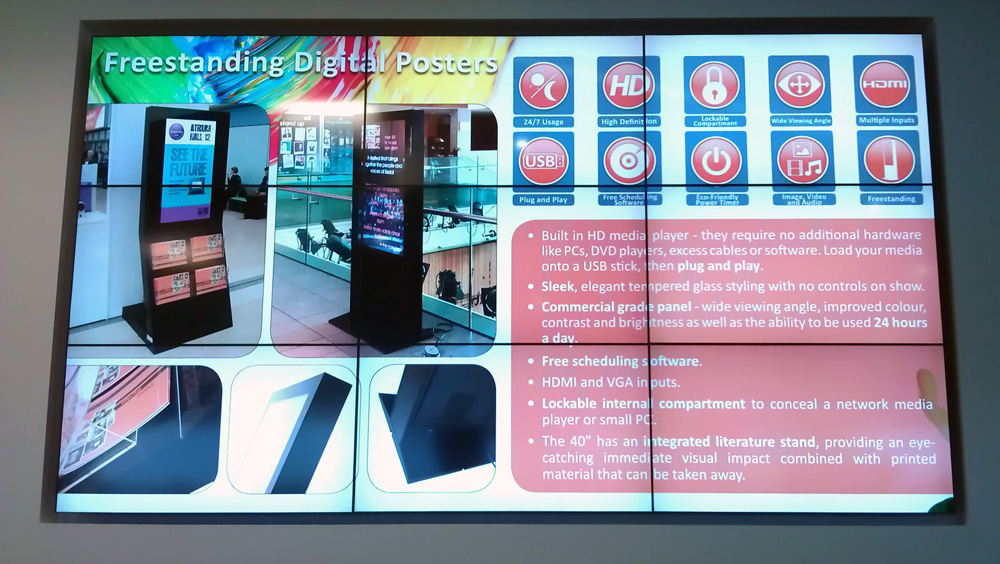

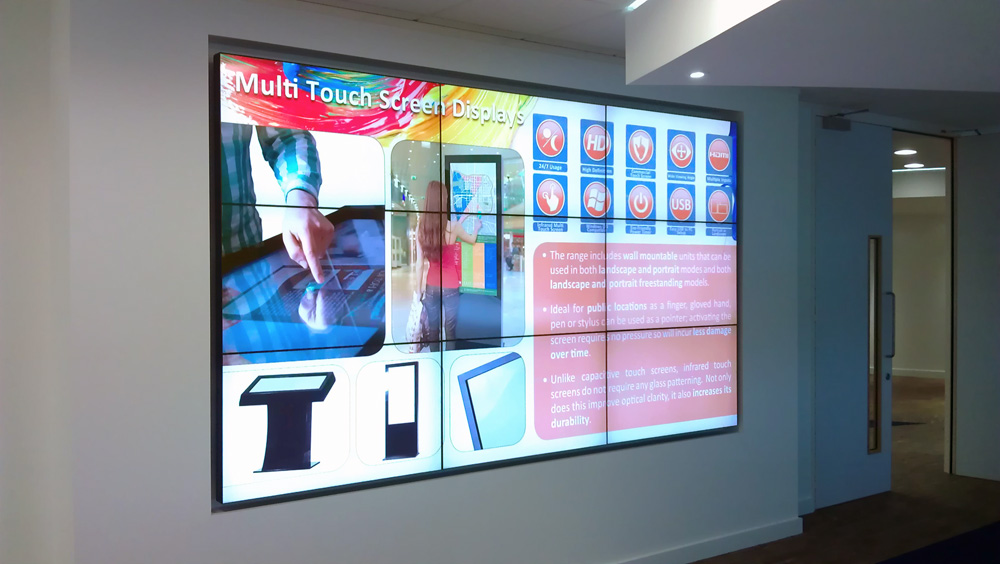

Ultra-Narrow Bezel for Near-Seamless Display

onQ's LCD video wall panels feature ultra-narrow bezels as thin as 1.8mm, creating a near-seamless display surface that minimises visual interruption across the tiled image. This near-seamless presentation is essential for applications where the video wall displays continuous imagery, video content, or data visualisations that must read as a single unified display rather than a grid of individual screens.

High Brightness and Contrast for Any Lighting Environment

onQ's LCD video wall panels deliver high brightness levels and contrast ratios that maintain image quality in challenging lighting environments, from brightly lit retail spaces to naturally lit corporate atriums. Automatic brightness adjustment ensures optimal display performance throughout the day without manual intervention, while wide colour gamut support enables accurate reproduction of brand colours and photographic content.

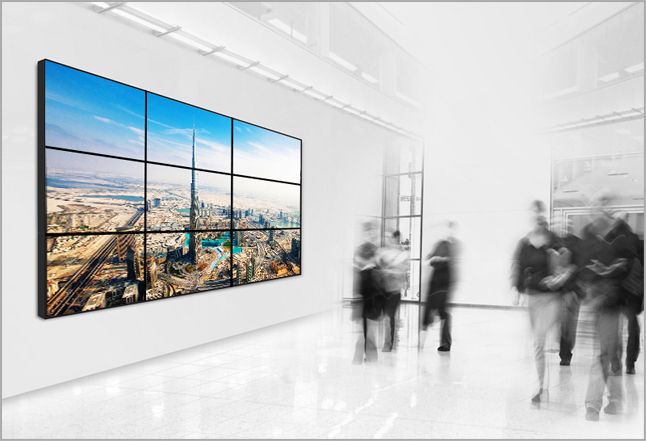

Flexible Configurations for Any Space

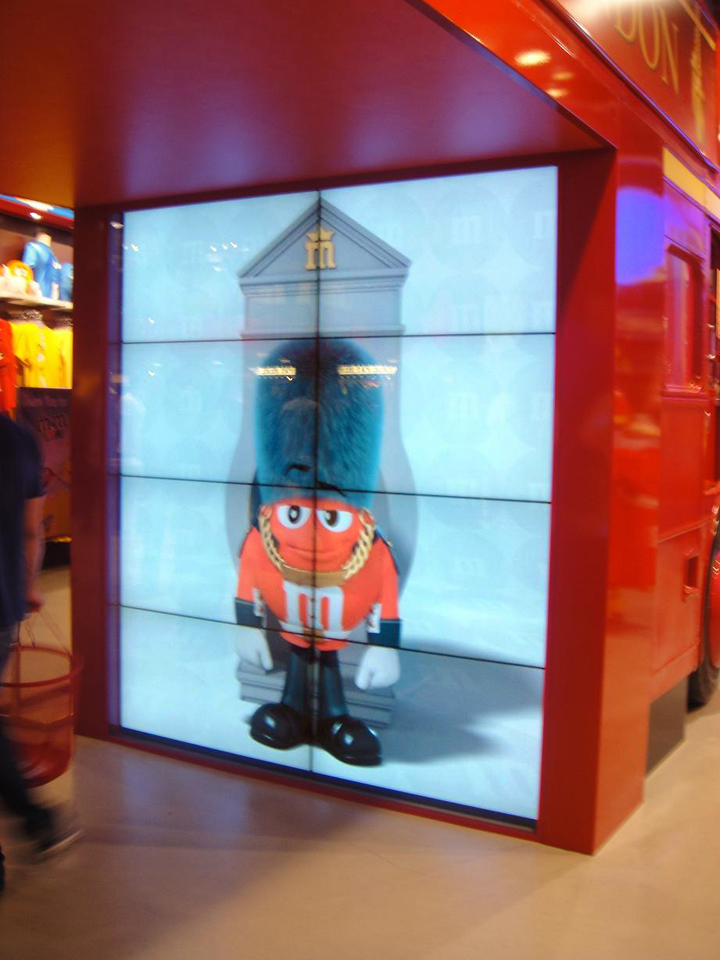

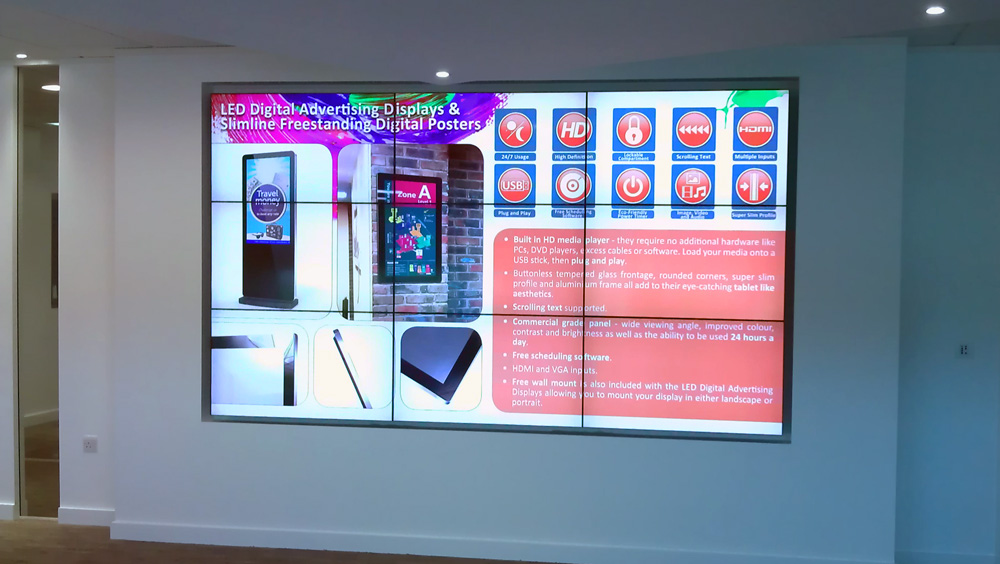

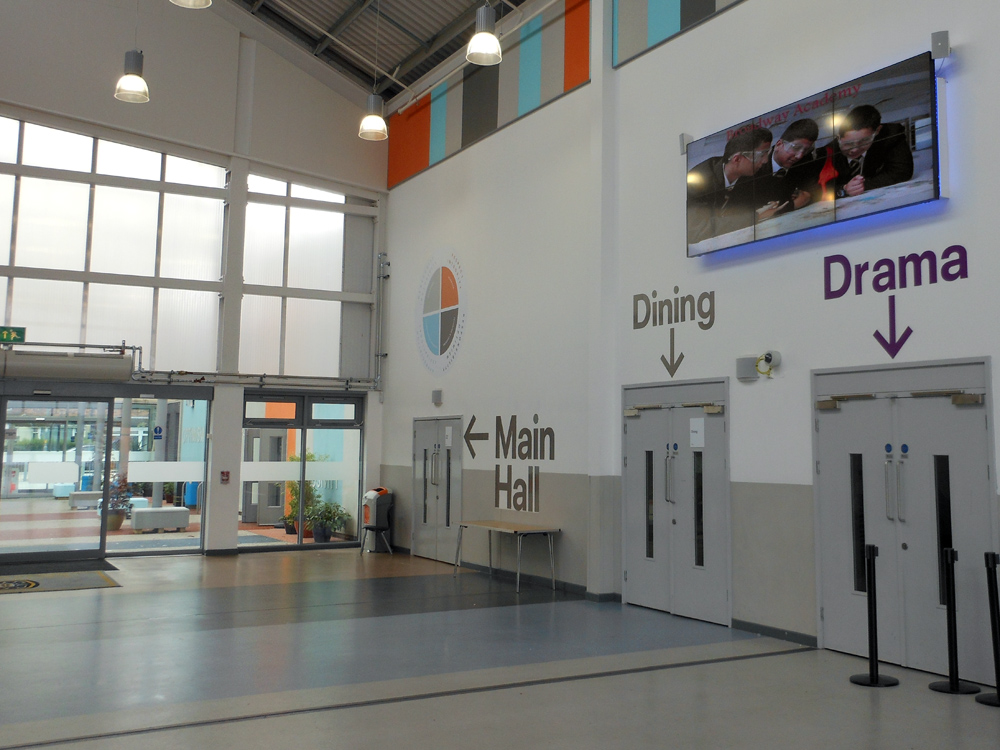

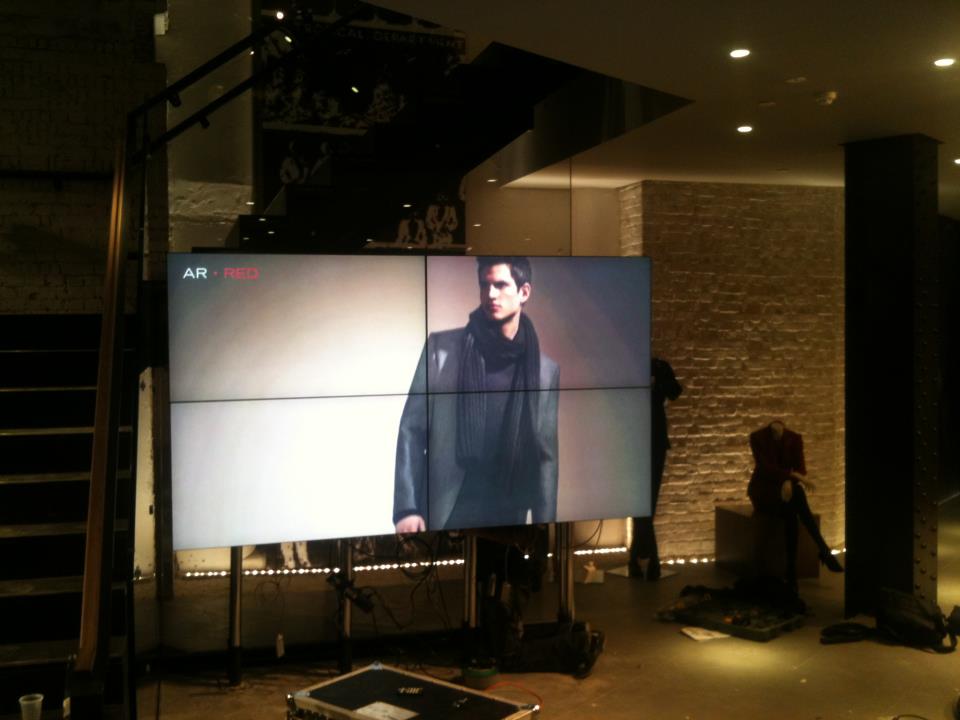

onQ's LCD video walls are available in a wide range of configurations, from compact 2x2 four-panel arrays to large custom installations spanning entire walls. Portrait, landscape, and mixed-orientation configurations are all supported, enabling video wall systems to be designed to suit the specific dimensions and visual requirements of any installation environment.

Centralised Content Management via onQ CMS

All onQ LCD video walls integrate with onQ CMS for centralised content management. Display a single image or video across the entire video wall, divide the display into independent zones showing different content simultaneously, or create dynamic layouts that combine full-wall content with zoned information panels. Real-time updates, scheduled playlists, and proof-of-play reporting are all available from the onQ CMS dashboard.

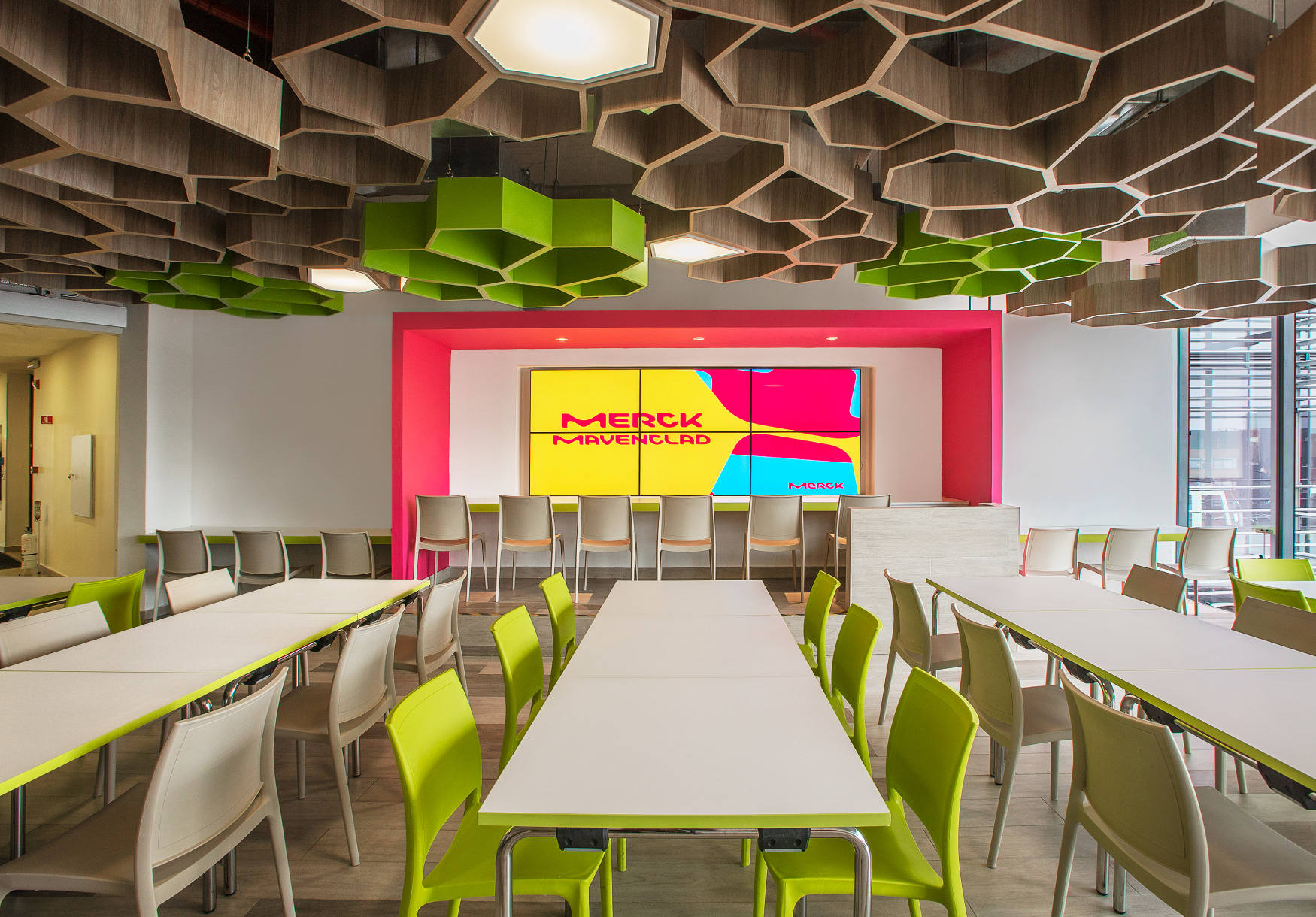

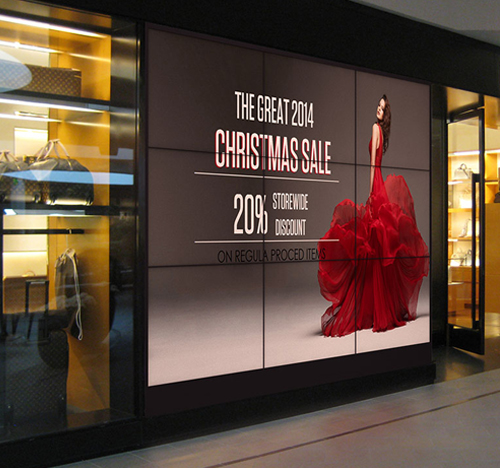

Applications for LCD Video Walls

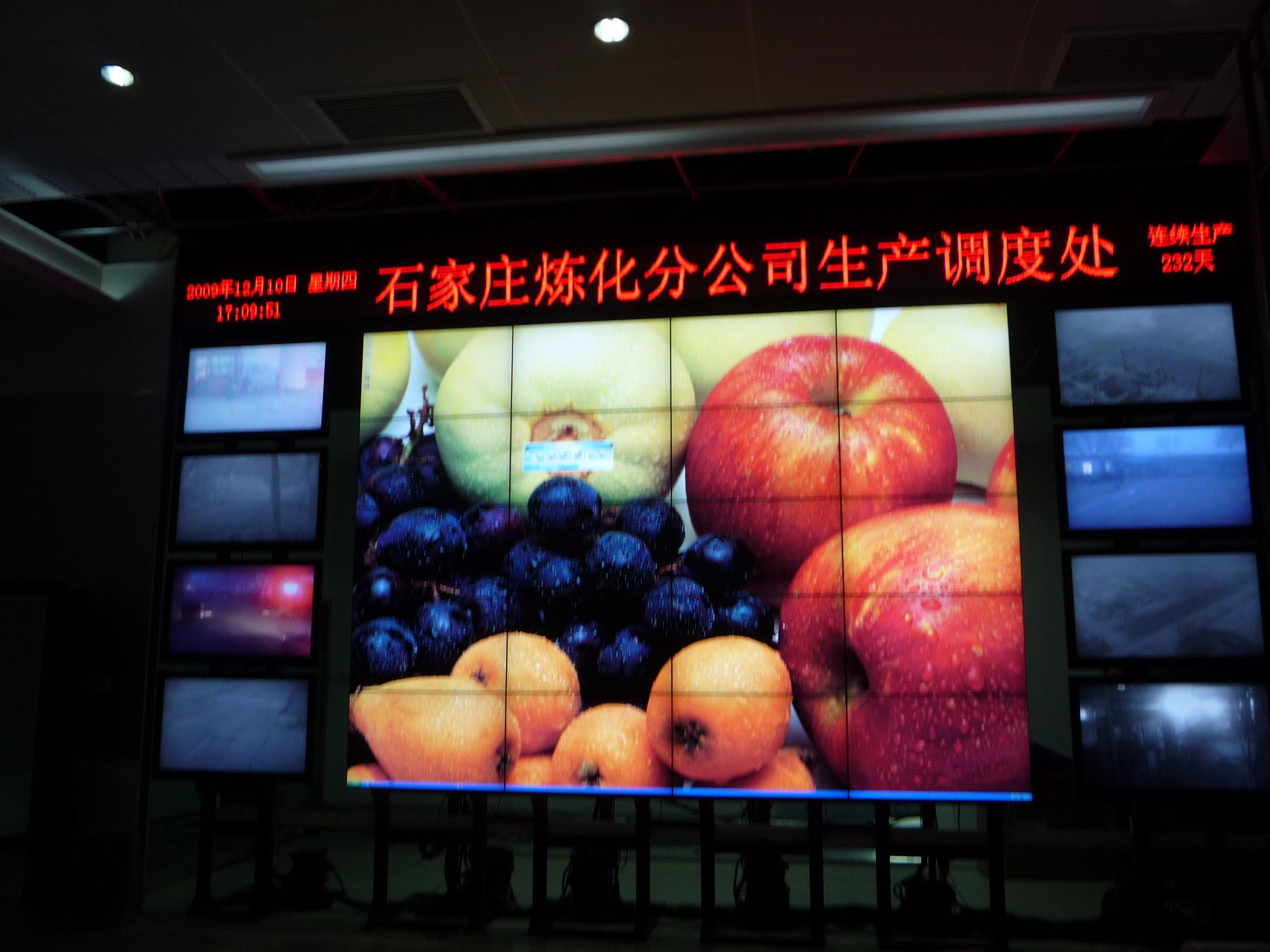

onQ's LCD video walls are deployed in retail flagship stores and shopping centres, corporate reception areas and boardrooms, control rooms and command centres, hotel lobbies and hospitality venues, broadcast studios and media environments, sports facilities and entertainment venues, and educational institutions. Any environment requiring large-format, high-impact visual communication benefits from LCD video wall technology.

Gallery

No items found.

Specifications

Display Area: 1074x604.3
Unit Size: 1077.5x607.8x113.8
Package Size: 258x858x285
Net Weight: 25kg
Gross Weight: 31.5kg
Power Consumption (w): 155

Panel

Resolution: 1920x1080
Aspect Ratio: 16:9‍
Brightness (cd/m2): 500
Contrast Ratio: 4000:1
Viewing Angle: 178°
Colour: 16.7M
Backlight Life: 50,000 Hours

AV Inputs

Inputs: HDMI, DVI, VGA, RGB/HV (BNC), Video1 IN (BNC), Video2 IN (BNC), RS-232 In, IR In, Keyboard (IR), Audio in
Outputs: RS-232 Out, IR Out, Audio out

Power

Input Voltage: 100V ~ 240V(50/60Hz)
Power Management: VESA DPMS

Environmental

Operating Temperature: 0°C to 50°C
Operating Humidity: 10% to 90%
Working Pressure: 800-1114 hPa (Altitude:0-2,000m)

‍

Display Area: 1209.9x680.7
Unit Size: 1213.4x684.2x117.9
Package Size: 1400x950x280
Net Weight: 31.5kg
Gross Weight: 40.6kg
Power Consumption (w): 160

Panel

Resolution: 1920x1080
Aspect Ratio: 16:9‍
Brightness (cd/m2): 500
Contrast Ratio: 4000:1
Viewing Angle: 178°
Colour: 16.7M
Backlight Life: 50,000 Hours

AV Inputs

Inputs: HDMI, DVI, VGA, RGB/HV (BNC), Video1 IN (BNC), Video2 IN (BNC), RS-232 In, IR In, Keyboard (IR), Audio in
Outputs: RS-232 Out, IR Out, Audio out

Power

Input Voltage: 100V ~ 240V(50/60Hz)
Power Management: VESA DPMS

Environmental

Operating Temperature: 0°C to 50°C
Operating Humidity: 10% to 90%
Working Pressure: 800-1114 hPa (Altitude:0-2,000m)

‍

Complete the form to download our spec sheet and get full details about this product

Thank you! Your submission has been received!

See Full Specsheet Download Full Specsheet

Oops! Something went wrong while submitting the form.

Related Projects

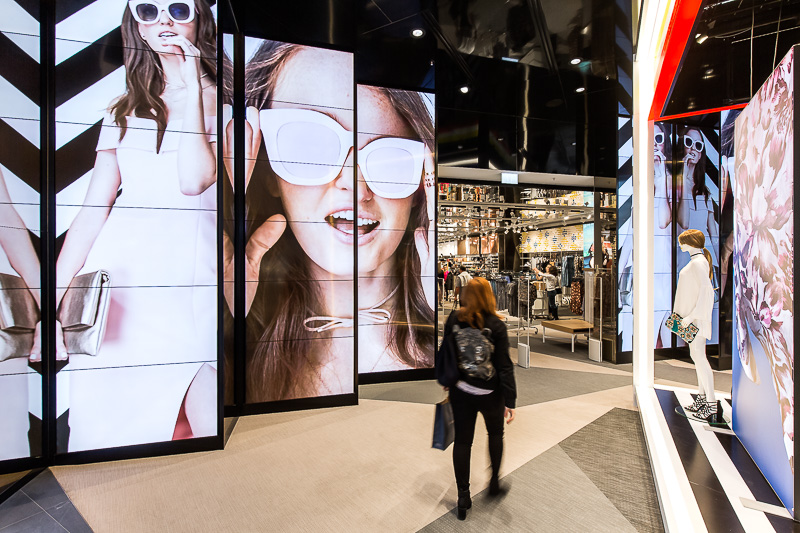

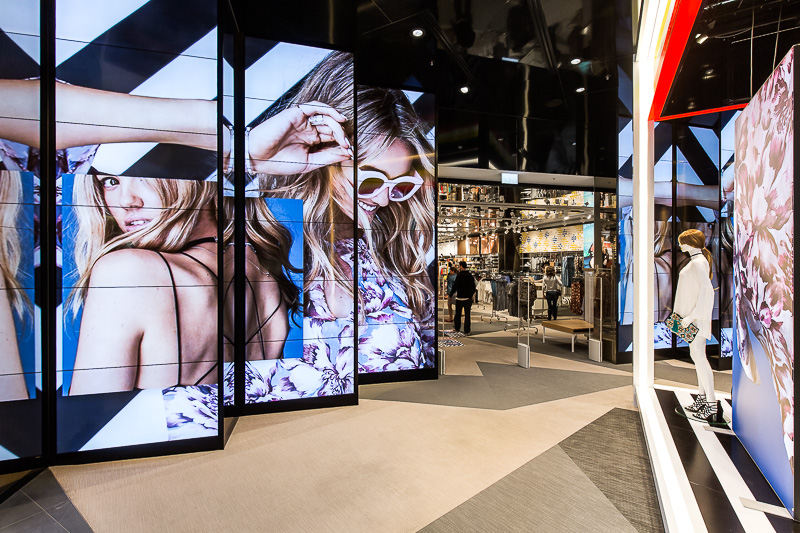

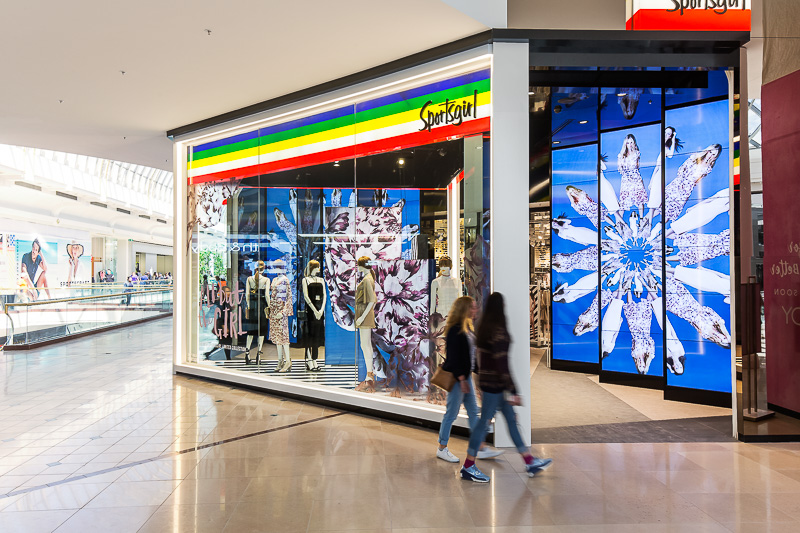

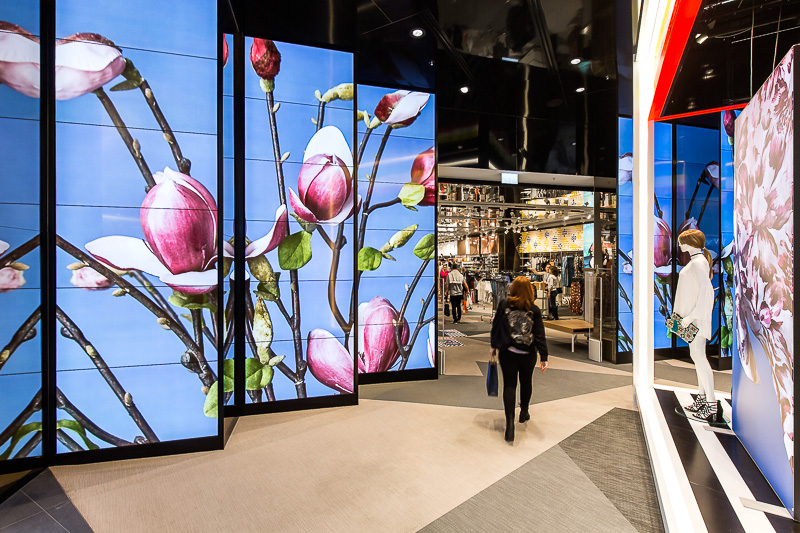

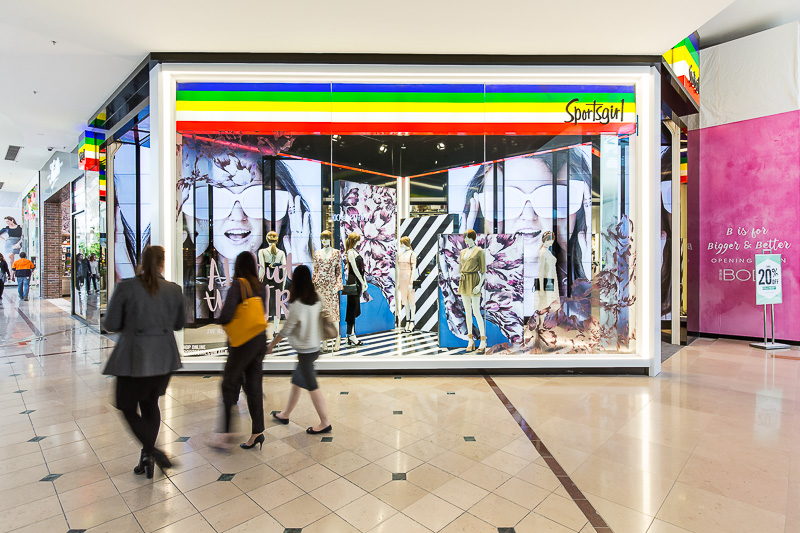

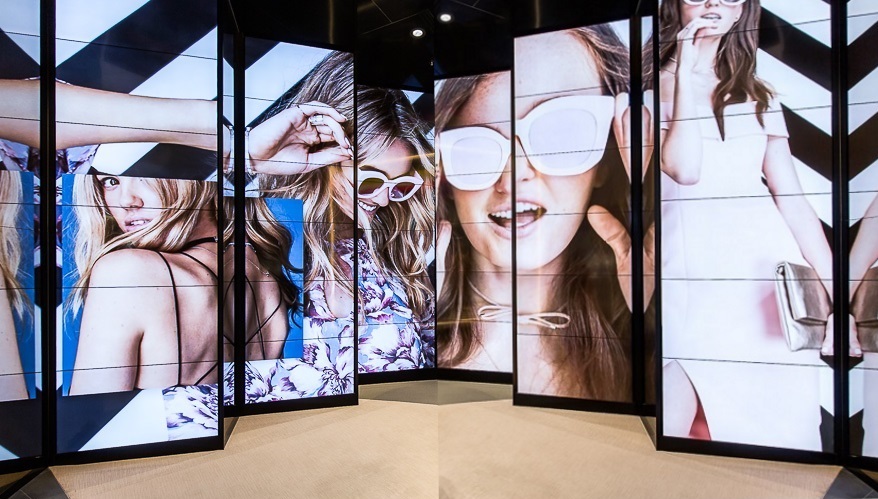

Sportsgirl - Chadstone Shopping Centre

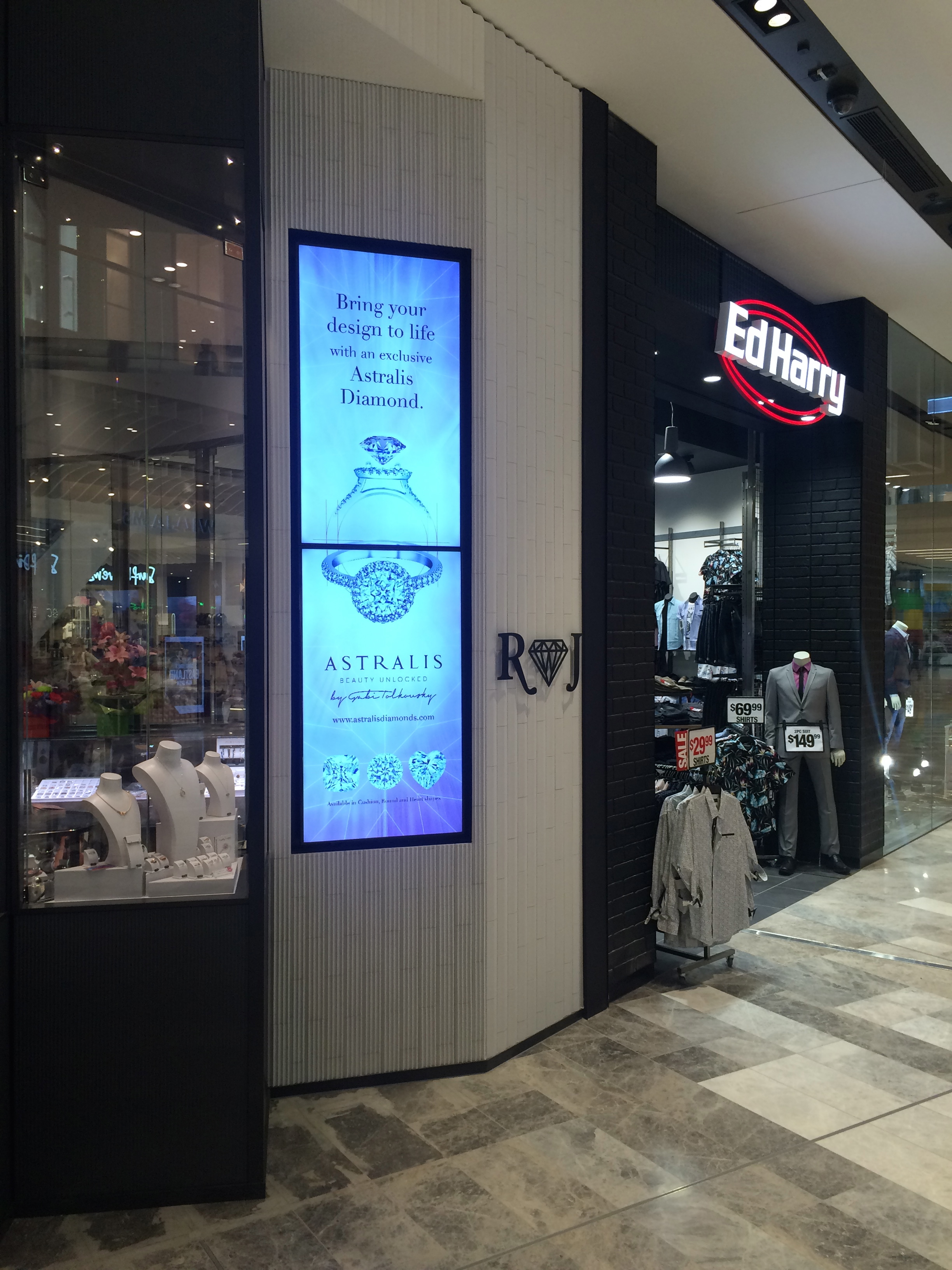

Ringwoods Jewellers - Eastlands
