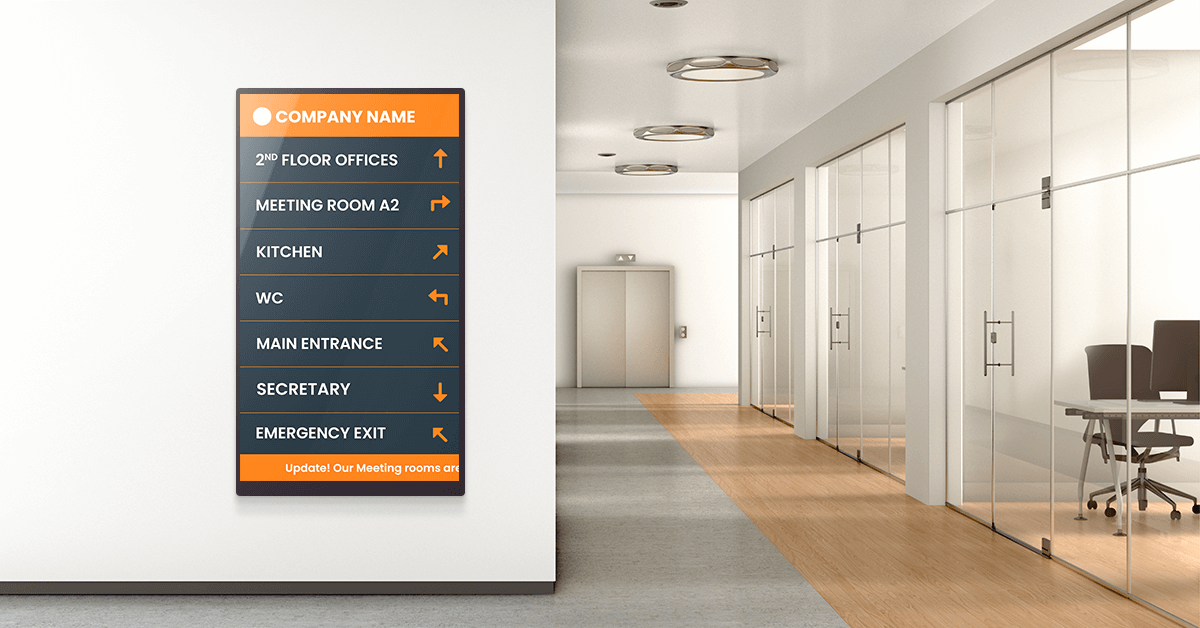

Digital Directory Boards


Digital Directory Boards
.png)
.png)


.png)



Product Features

Android Operating System for Flexible Application Support
onQ's digital directory boards run Android OS, enabling compatibility with a wide range of directory management applications, interactive wayfinding platforms, and building management system integrations. The Android platform provides a stable, reliable foundation for directory applications while enabling the flexibility to customise the user interface and functionality to suit the specific requirements of each building environment.
Save and Play Content with Internal Memory
onQ's digital directory boards feature internal memory storage that enables content to be saved locally and played without continuous network connectivity. This ensures directory content remains available even during network interruptions, providing reliable information access for building visitors at all times. Content updates are pushed remotely via onQ CMS when network connectivity is available.
Real-Time Tenant Information Management
onQ's digital directory board platform enables building managers to update tenant information in real time, ensuring the directory always reflects current occupancy, business names, and floor locations. Automated integration with building management systems enables tenant changes to be reflected in the directory immediately upon update, eliminating the lag and administrative burden of manual directory maintenance.
Touch Screen Wayfinding for Improved Visitor Navigation
Touch screen capability enables building visitors to interact with the directory to find specific tenants, search by business name or category, and access turn-by-turn wayfinding to their destination. Interactive wayfinding reduces visitor confusion, decreases enquiries to reception staff, and improves the overall visitor experience in complex multi-tenancy buildings.


Applications for Digital Directory Boards
onQ's digital directory boards are deployed in shopping centres and retail precincts, corporate office towers, hospitals and healthcare facilities, universities and educational campuses, mixed-use developments, government buildings, and any multi-tenancy facility where clear, current tenant information and wayfinding capability improves the visitor experience.
Ad Revenue Opportunities
Generate additional revenue through tenant and third-party advertisements on your digital directory display. onQ’s flexible ad management system enables businesses to easily monetize their screens, integrating ad space seamlessly alongside wayfinding and tenant information.
Emergency Mode
Quickly switch to emergency mode in critical situations, displaying only essential safety and evacuation information. This functionality ensures that vital details are prioritized during emergencies, helping keep visitors and employees informed and safe.

Specifications
Display
- Screen Size: 50"
- Panel resolution: 3840 x 2160
- Pixel pitch: 0.2854 x0.2854 mm
- Contrast ratio: 4000:1
- Aspect ratio: 16:9
- Brightness: 500cd/m²
- Display colors: 1.07 Billion
- Viewing angle: 178Degree
Power
- Consumption (Typical): 100 W
- Consumption (Max): 132 W
Media play
- Video format: MPEG, H.263, H.264, H.265
- Picture Format: BMP, JPEG, PNG
- Audio Format: AAC, HEAAC, MPEG
Internal Player
- CPU: 2 x A53 + 2 x A73
- GPU: ARM Mali G51
- Memory: 3GB DDR
- Storage: 32 GB eMMc
Connectivity
- Audio output: 3.5mm jack
- Video input: Display Port1.2 (x1)VI-I (x 1)HDMI 2.0 (x2)USB 2.0 (x2)
- Audio input: 3.5 mm jack
- Video output: DisplayPort 1.2 (x1)HDMI 2.0 (x1)
- WiFi: dual antenna 2,4Ghz and 5Ghz
Display
- Screen Size: 55"
- Panel resolution: 3840 x 2160
- Pixel pitch: 0.315 × 0.315 mm
- Contrast ratio: 5000:1
- Aspect ratio: 16:9
- Brightness: 500cd/m²
- Display colors: 1.07 Billion
- Viewing angle: 178Degree
Power
- Consumption (Typical): 178 W
- Consumption (Max): 218 W
Media play
- Video format: MPEG, H.263, H.264, H.265
- Picture Format: BMP, JPEG, PNG
- Audio Format: AAC, HEAAC, MPEG
Internal Player
- CPU: 2 x A53 + 2 x A73
- GPU: ARM Mali G51
- Memory: 3GB DDR
- Storage: 32 GB eMMc
Connectivity
- Audio output: 3.5mm jack
- Video input: Display Port1.2 (x1)VI-I (x 1)HDMI 2.0 (x2)USB 2.0 (x2)
- Audio input: 3.5 mm jack
- Video output: DisplayPort 1.2 (x1)HDMI 2.0 (x1)
- WiFi: dual antenna 2,4Ghz and 5Ghz
Display
- Screen Size: 65"
- Panel resolution: 3840 x 2160
- Pixel pitch: 0.372 x 0.3 72 mm
- Contrast ratio: 1200:1
- Aspect ratio: 16:9
- Brightness: 500cd/m²
- Display colors: 1.07 Billion
- Viewing angle: 178Degree
Power
- Consumption (Typical): 179 W
- Consumption (Max): 309 W
Media play
- Video format: MPEG, H.263, H.264, H.265
- Picture Format: BMP, JPEG, PNG
- Audio Format: AAC, HEAAC, MPEG
Internal Player
- CPU: 2 x A53 + 2 x A73
- GPU: ARM Mali G51
- Memory: 3GB DDR
- Storage: 32 GB eMMc
Connectivity
- Audio output: 3.5mm jack
- Video input: Display Port1.2 (x1)VI-I (x 1)HDMI 2.0 (x2)USB 2.0 (x2)
- Audio input: 3.5 mm jack
- Video output: DisplayPort 1.2 (x1)HDMI 2.0 (x1)
- WiFi: dual antenna 2,4Ghz and 5Ghz
Display
- Screen Size: 75"
- Panel resolution: 3840 x 2160
- Pixel pitch: 0.4296 x 0.4296 mm
- Contrast ratio: 1200:1
- Aspect ratio: 16:9
- Brightness: 500cd/m²
- Display colors: 1.07 Billion
- Viewing angle: 178Degree
Power
- Consumption (Typical): 224 W
- Consumption (Max): 375 W
Media play
- Video format: MPEG, H.263, H.264, H.265
- Picture Format: BMP, JPEG, PNG
- Audio Format: AAC, HEAAC, MPEG
Internal Player
- CPU: 2 x A53 + 2 x A73
- GPU: ARM Mali G51
- Memory: 3GB DDR
- Storage: 32 GB eMMc
Connectivity
- Audio output: 3.5mm jack
- Video input: Display Port1.2 (x1)VI-I (x 1)HDMI 2.0 (x2)USB 2.0 (x2)
- Audio input: 3.5 mm jack
- Video output: DisplayPort 1.2 (x1)HDMI 2.0 (x1)
- WiFi: dual antenna 2,4Ghz and 5Ghz
